SP2-6400-HT

Dual Mono Block Subwoofer Rack Amplifier
Home Theater (HT)

19" Rack Mount - 2RU

Power Rating Per Channel:

3000W at 2 ohms

3200W at 4 ohms

1800W at 8 ohms

131 VRMS (185 Vp) at Hi-Z

Independent Subwoofer DSP Controls per channel

OVERVIEW:

• This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
• Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
• The DUAL MONOBLOCK architecture ensures consistent and powerful performance.

FEATURES:

3-MODE SWITCH

1. ON - Amplifier ON
2. AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
3. OFF/TRIG - Amplifier OFF, 12V TRIGGER enables amp

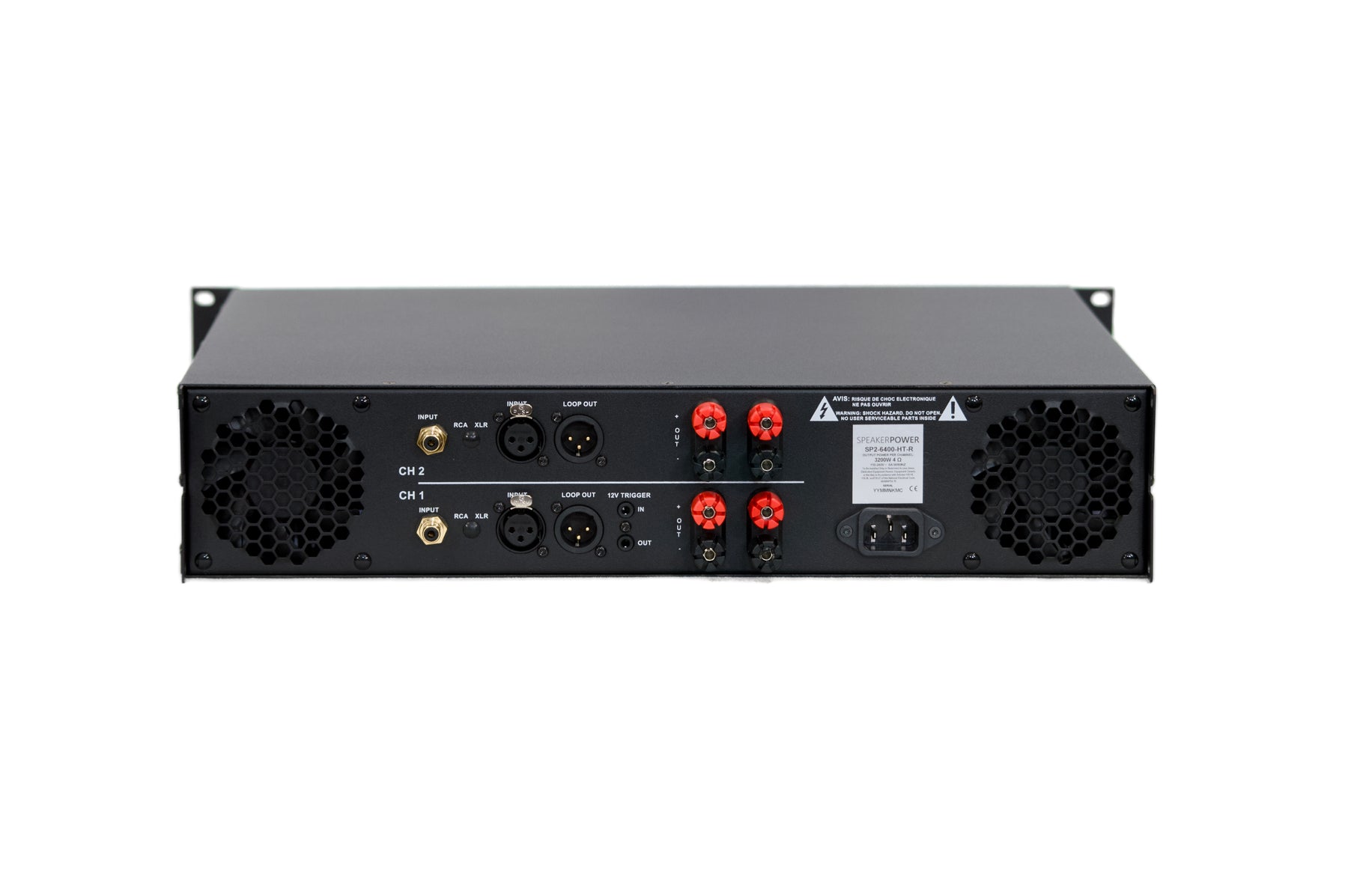

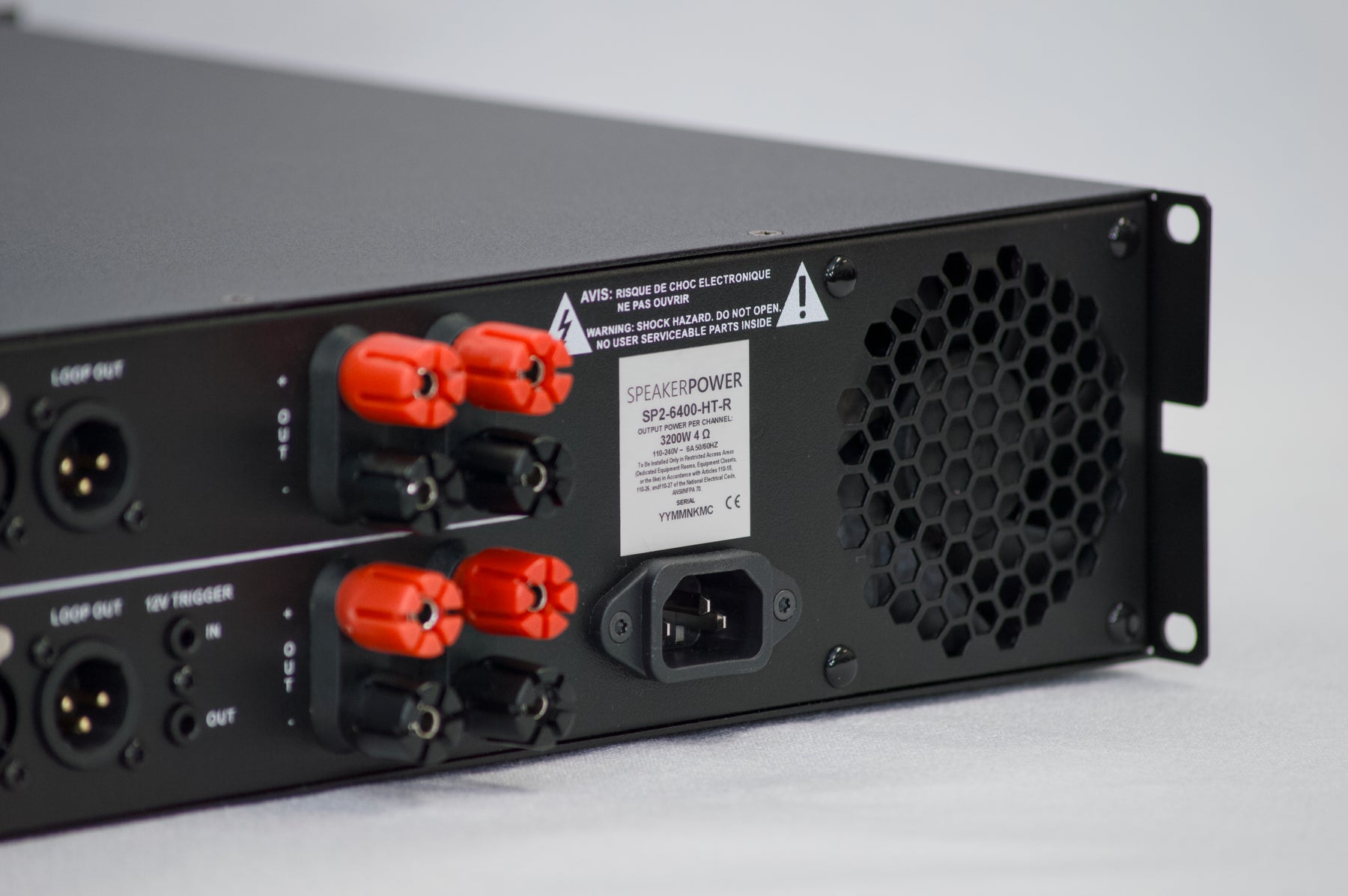

CONNECTIONS

• 3.5mm minijack 12V TRIGGER (IN / THRU)
• RCA (Single-ended) per channel
• XLR (Balanced) with Looping out (THRU) per channel
• IEC C13 AC mains connector
• Two paralleled binding posts (5-way, up to 12AWG) per channel

LED INDICATION

• GREEN - ON, Amplifier ready to pass signal
• RED - STBY, Amplifier is in low-power standby

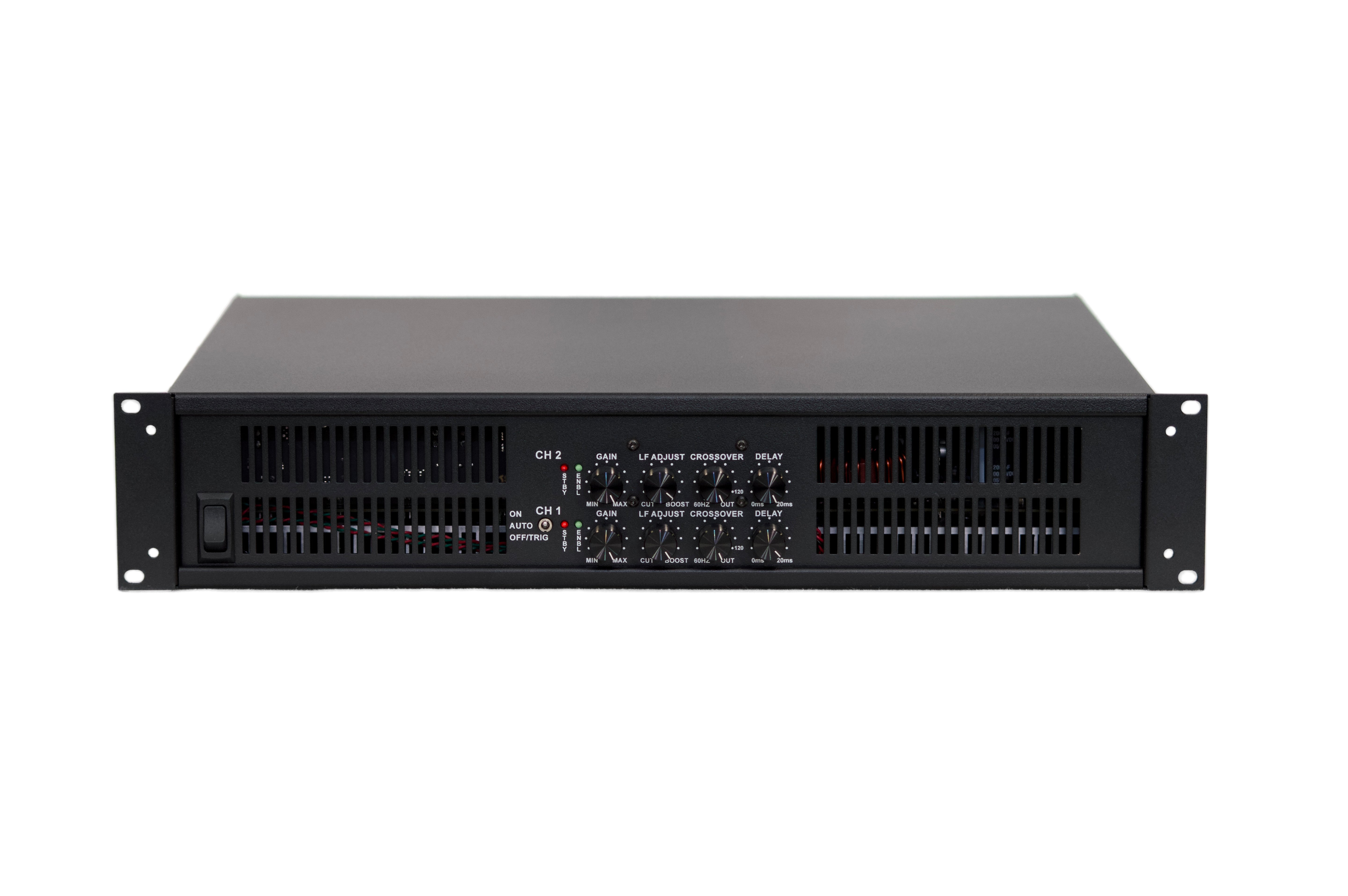

 ROTARY CONTROLS

1. GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
2. LF ADJUST - 40Hz Tone Shelf ("Bass Boost", CUT-12dB, BOOST+12dB)
3. CROSSOVER - 60Hz to OUT (500Hz)
4. DELAY - 0ms to 20ms

SPECIFICATIONS:

• AMPLIFIER TOPOLOGY CLASS-D
• POWER SUPPLY 3200W with Power Factor Correction (PFC) per channel
• FREQUENCY REPSONSE  5Hz to 500Hz (+-1.5dB)
• AMPLIFIER GAIN  45dB
• AC MAINS  100 - 265VAC 50/60Hz (Universal) rated power at 220VAC
• STANDBY POWER DRAW 30W
• COOLING EXTRUDED ALUMINUM HEATSINK per module
• FANS TEMPERATURE ACTIVATED, turn on at 175F (80C) internal
• INPUT SENSITIVITY 316mV (at MAX GAIN)
• INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
• OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
• DIMENSIONS
  • HEIGHT   3.5 in. ( 88.9 mm) - 2 RACK UNITS (2RU)
  • WIDTH     19 in. (482.6 mm)
  • DEPTH   14.5 in. (368.3 mm)
• WEIGHT 22 LBS (9.97 kg)
